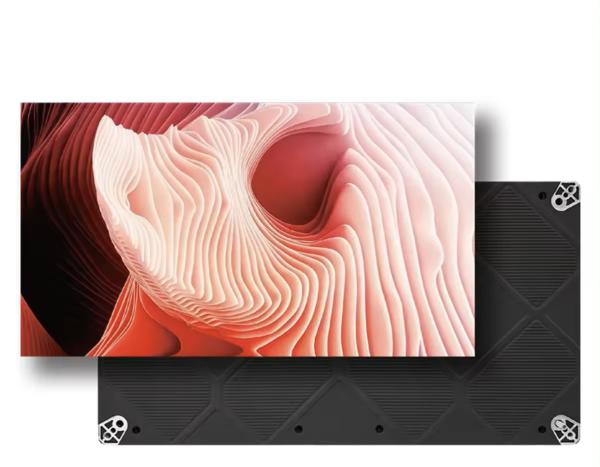

Diecasting Aluminum COB Smd Led Display P1.25 3200K-9300K

Ask Lasest Price
Brand Name :	HSCX
Model Number :	P1.25
Certification :	CE ROHS FCC
Payment Terms :	L/C, T/T, D/A
Supply Ability :	1000Set
Delivery Time :	20-35 workdays

Add to Cart

Product Details
Company Profile

Diecasting Aluminum COB Smd Led Display P1.25 3200K-9300K

P1.25 LED display Ultra high definition led display

P1.25mm LED full colour led display 600*337.5mm HD led Video Wall

Indoor COB LED Display screen Cabinet 600*337.5mm

Indoor COB P1.25 HD LED screen LED Display 600*337.5mm LED Screens

full colour led display Features:

1. Module size:150x168.75mm, compatible pitch: P0.93/P1.25/p1.56

2. Cabinet size:600x337.5mm,16:9 aspect ratio.

3. Floating connection design between module and cabinet, the module could be fine-tuned.

4. Support double backup of power supply and control system

5. 2K/4K/8K dot to dot matching.

Parameters:

COB P1.25 Led Display Specification
pixel pitch	p1.25
lamp	COB
module size(W×H)	150*168.75
module resolution(Pixel/m2)	120*135
physcial density(dot/m²)	640000
cabinet size(W×H)	600 * 337.5 mm
cabinet resolution(W*H)(Pixel)	480*270
scanning mode	1/45
cabinet Material	Diecasting Aluminum
cabinet weight(kg)	5
best viewing distance(m)	1.25
gray scale(bit)	14-16
IP Grade	IP31
viewing angle	H:160 V:160
brightness	600-900cd/㎡
contrast ratio	≥8000:1
color temperature	3200-9300k
refreshrate	≥3840hz
Maximum power	600W/M2
Average power	200W/M2
Operating temperature	-20-60℃
Operating Humidity	10-95%RH
Input Voltage	AC110-220V±15% 50-60Hz
MTBF(Hours)	50000
Life Time(Hours)	100000

1,COB LED display: Easy to clean with water, eliminating the need for masks, dust, or cloths.

2,All-weather excellence: Utilizes triple protection for superb performance against water, moisture, corrosion, dust, static, oxidation, and UV effects.

3,High Resolution: Provides crisp and clear images, ideal for viewing detailed content and graphics.

4,Brightness and Contrast: Offers high brightness levels and excellent contrast ratios, ensuring visibility even in well-lit environments.

5,Long Lifespan: LED displays have a long operational lifespan, requiring minimal maintenance and replacement.

6,Flexibility: Can be customized in terms of size, shape, and aspect ratio to fit various indoor spaces and applications.

7,Versatility: Suitable for a wide range of indoor applications including retail stores, corporate offices, command centers, broadcast studios, and more.
