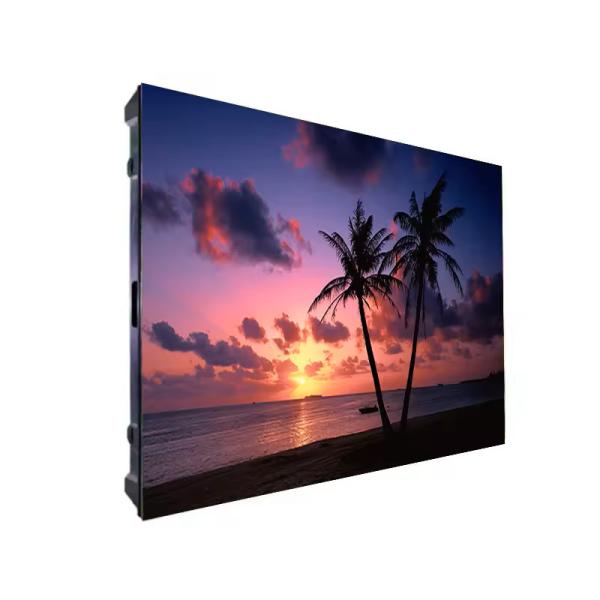

Small Pixel Pitch P3 Led Screen Display Full Colour SMD2121 Indoor OEM

Ask Lasest Price
Brand Name :	HSCX
Model Number :	P3
Certification :	CE ROHS FCC
Payment Terms :	L/C, T/T, D/A
Supply Ability :	1000Set
Delivery Time :	20-35 workdays

Add to Cart

Product Details
Company Profile

Small Pixel Pitch P3 Led Screen Display Full Colour SMD2121 Indoor OEM

full colour led display small pixel pitch LED display

P3mm full colour led display HD fullcolourleddisplay

Indoor LED Display screen for Commercial Meeting Room

SMD2121 LED display screen Indoor HD LED screen LED Display

full colour led display Features:

1. Module size:320*160mm, compatible pitch:P2.5/p2/P3

2. Cabinet size:640*480mm,640*640mm 960*480mm or customized,die-casting box.

3.Customized Service :

We can customize the product according to customers' needs, you just need to provide the requirements details and also specify the lamp bead brand, ic brand.

4. Installation Support:

Diversified installation and high protection level . In addition, we have processional technical engineer provide remote assistance.

5. Quality Assurance:

Using Nationstar, Nichia, Cree,Kinglight gold and Copper Wire,big size rgb chips, long service life, low failure rate;

Original pvc plastic and even aluminum material, good toughness, high and low temperature resistance, V0 grade flame retardant, UVresistant.

Parameters:

full colour led display indoor Led Display Specification
pixel pitch	3
lamp	SMD2121
module size(W×H)	192*192mm
module resolution(Pixel/m2)	64*64
physcial density(dot/m²)	11111
cabinet size(W×H)	640480 mm / 640640mm / 960*480mm or customized
scanning mode	1/32
cabinet Material	Diecasting Aluminum
cabinet weight(kg)	6.8 customized
best viewing distance(m)	3
gray scale(bit)	14
IP Grade	IP31
viewing angle	H:160 V:160
brightness	600-900cd/㎡
contrast ratio	≥8000:1
color temperature	3200-9300k
refreshrate	≥1920-3840hz
Maximum power	600W/M2
Average power	200W/M2
Operating temperature	-20-60℃
Operating Humidity	10-95%RH
Input Voltage	AC110-220V±15% 50-60Hz
MTBF(Hours)	50000
Life Time(Hours)	100000

* We Can Make The OEM And ODM,Customize The Shape,Size And Lamp Bead Brand, IC Brand,*

Features of full colour led display:

1. Video frame rate(≥60 Hz), screen smoother.

2. Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output

3. Front maintenance way, easy to replace module and repair components

4. Grey Level(14-16bit).

LED Chips : Nichia/Cree/Epistar/Silan/King light/Silan/KN-LIGHT All Our Brand Partners

IC : Mblock/Mingyang/Chipone/Mingwei All Our Brand Partners

Power Supply:Meanwell/Megmeet/Powerld/Rong Electronic/G-Energy All Our Brand Partners

Control Card:Novastar, Linsn, Colorlight, Huidu All Our Brand Partners

Video Processor:Novastar, Videowall All Our Brand Partners

PCB Board : Flame Retardant, Anti-Aging

Magnesium Ally Cabinet : Light Weight, Corrosion Resistance

Our Advantages+After-sell service

1. Use Novastar system, high level of video display control.

2. High contrast, rich color, looks smooth and vivid.

3. Strict quality control ability for full production process.

4.Providing free accessories, such as power and data cables wiring diagram.

5.Free remote control debuggine serice if you need.

6. Factory supply, best price and convenient to custom made.Online service of professional staff.

7. Service from professional engineers and sales team, save your time and effort.
