| Brand Name : | HSCX |
| Model Number : | P3 |
| Delivery Time : | 10-15 workdays |
| Certification : | CE ROHS FCC |
| Payment Terms : | L/C, T/T |

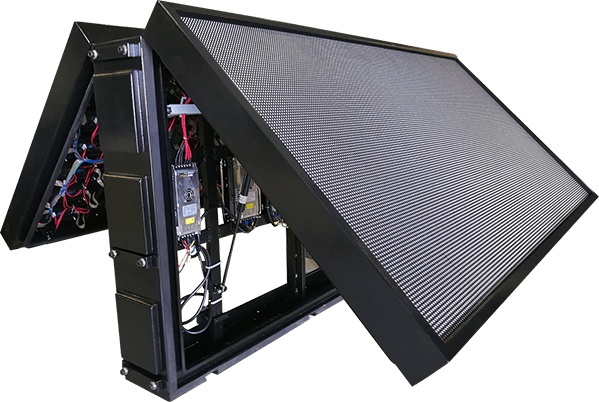

Features of Led Wall Screen Display Outdoor
Outdoor led sign boards is designed for outdoor environments, full waterproof, the front and back of led screen are with waterproof. It make it can work normal in heavy rainy days. High refresh rate, it can reach 3840Hz. High brightness, more than 5500nits.
1) Full waterproof design, it can work nomally in bad weather.
2) high contast, can present more vivid images and videos.
3) Save space, led wall display can be implant in the wall.
4) High refresh rate,more than 3840Hz.
Led Display Specification
| OutdoorLED Display | |||||||
| Model No. | P2.5 | P3.0 | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 2.5 | 3.076 | 4 | 5 | 6 | 8 | 10 |
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD2727 | SMD3535 | SMD3535 SMD3535 | |
| Module Dimensio (W*H)(mm) | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
| Cabinet Dimension (W*H)(mm) | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
| Cabinet Material | Magnesium Alloy | ||||||
| Cabinet Weight (Kg) | 28 | ||||||
| Ingress Protection (Front/Rear) | IP65 | ||||||
| Brightness(nits) | 5500~6500 | ||||||
| Viewing Angle | H:140°Vi140 | ||||||
| Color Temperature | 3200~9500K | ||||||
| Max Power Consumption (W/m²) | 750 | 750 | 750 | 750 | 750 | 800 | 800 |
| Average Power Consumption (W/m²) | 300 | 300 | 300 | 300 | 300 | 350 | 350 |
| Maintenance Method | Rear Maintenance(Our c Series Support Front Maintenance) | ||||||
| Gray Level | 14bit | ||||||
| Refresh Rate (Hz) | 3200~3840Hz | ||||||
| Waterproof Level | IP65 | ||||||
| Operating Temperature | -20°~60° | ||||||
| Life Time (Hours) | 100000 | ||||||
| Warranty | 3-5years | ||||||
