Shenzhen H&S Innovation Technology Co., Ltd
2 Years
| Ask Lasest Price | |
| Brand Name : | HSCX |
| Model Number : | P16 |
| Certification : | CE ROHS FCC |
| Payment Terms : | L/C, T/T |
| Delivery Time : | 10-35 workdays |

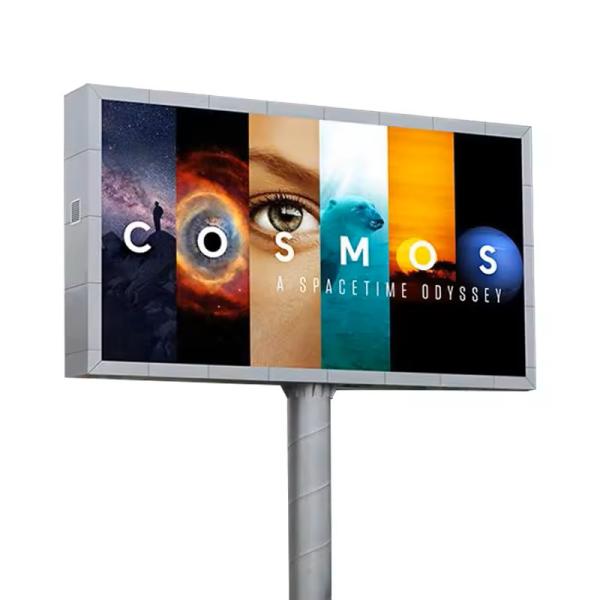

P10 outdoor led display screen
Led Display Specification
| outdoor led display P16 | |||
| Resolution/mm | 16mm | ||
| Pixel configuration | 1R1G1B DIP346 | ||
| Pixel density/pixels/m² | 10000/m² | ||
| Module resolution | 16x16 dot | ||
| Module size/mm | 160x160mm | ||
| View distance | 16-500m | ||
| Maximum power | 720W/m2 | ||
| Average power | 240W/m2 | ||
| Cabinet Dimension(W*H)(mm) | 960 x 960 | ||
| Cabinet Resolution(W*H)(Pixel) | 96 x 96 | ||
| Cabinet Material | Magnesium Alloy / Waterproof lron | ||
| Cabinet Weight(KG) | 25/30 | ||
| brightness | >7800cd/㎡ | ||
| Refresh frequency | >1920-3840Hz | ||
| Ingress Protection(Fron/Rear) | IP65 | ||
| Life time | 100000hours | ||
| Environment temperature range | Operating temperature range: -30-50℃ | ||
| Humidity(working) | working:10-95% | ||
|
|
