Shenzhen H&S Innovation Technology Co., Ltd
2 Years
| Ask Lasest Price | |
| Brand Name : | HSCX |
| Model Number : | P10 |
| Certification : | CE ROHS FCC |
| Payment Terms : | L/C, T/T |
| Delivery Time : | 10-35 workdays |

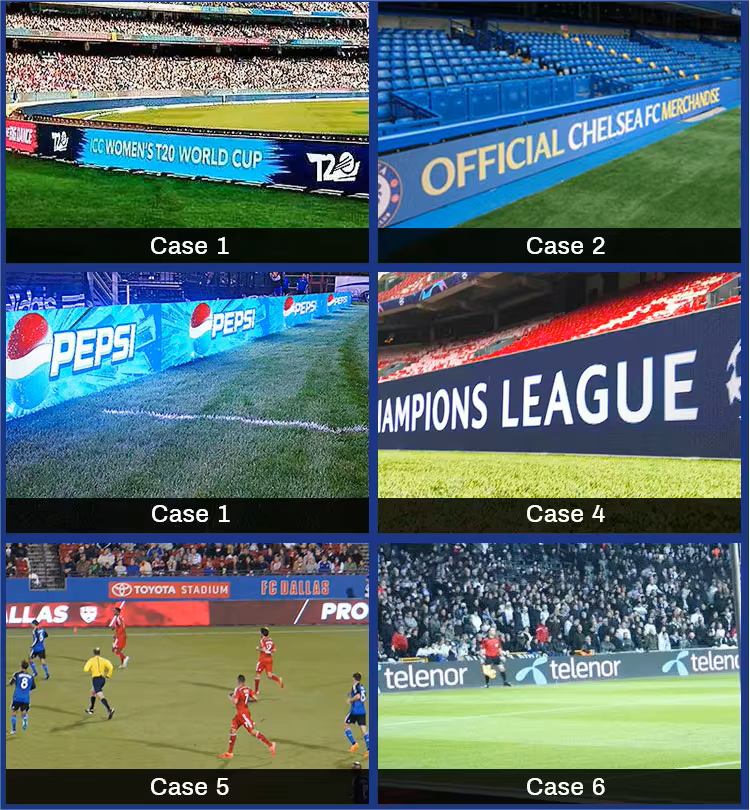

Customized RGB LED Screen Football Stadium Advertising Boards
Customized LED Display Football Stadium Advertising Boards P10
Quick details of P10Football Stadium Advertising Boards
Led Display Specification
| outdoor Stadium led display P10 | |||
| Resolution/mm | 10 | ||
| LED Type | SMD3535 | ||
| Module DIMENSION(W*H)(mm) | 320*160 | ||
| Pixel density/pixels/m² | 10000/m² | ||
| Module resolution | 32x16dot | ||
| Scan mode | 2S | ||
| Cabinet Dimension(W*H)(mm) | 960 x 960 | ||
| Cabinet Resolution(W*H)(Pixel) | 96 x 96 | ||
| Cabinet Material | Magnesium Alloy | ||
| Cabinet Weight(KG) | 28 | ||
| Best Viewing Distance(m) | 10 | ||
| brightness | >7000cd/㎡ | ||
| Refresh frequency | >1920-3840Hz | ||
| Ingress Protection(Fron/Rear) | IP65 | ||
| Viewing Angle | H:140° V:140° | ||
| Color Temperature | 3200-9500K | ||
| Gray Level | 14bit | ||
| Maximum power | 800W/m2 | ||
| Average power | 350W/m2 | ||
| Environment temperature range | Operating temperature range: -30-80℃ | ||
| Humidity(working) | working:10-95% | ||
| Input Voltage | AC110-220V±15% 50-60Hz | ||
| Life time | 100000hours | ||
|
|
