Double Sided P4 Round Shape Led Display Flexible Digital Screen

Ask Lasest Price
Brand Name :	HSCX
Model Number :	P4
Payment Terms :	L/C, T/T
Supply Ability :	1000set
Delivery Time :	8-25work days
Certification :	CE ROHS FCC

Add to Cart

Product Details
Company Profile

Double Sided P4 Round Shape Led Display Flexible Digital Screen

Roud Led display screen

Model Number : Round Screen Led Display

Application:Video

Brand Name:H&S

Place of Origin:shenzhen, China

Specification:led

Color:Full color

Refresh rate:1920-3840Hz

Brightness:≥5000cd/㎡

Lifespan:100 000 hours

Warranty:2 Years

Certificate:CE ROHS FCC

PH4.28 Technical Specifications
Pixel point parameter
1	LED	SMD1921
2	Pixel Pitch	4.28mm
3	Pixel composition	1R1G1B
Module technical parameters
1	Module resolution (W * H)	70*70dot
2	Module size (W * H)	300mm*300mm
Screen body technical parameters
1	Full screen size	640mm640mm120mm
2	dot density	54289dot/m²
3	screen resolution	One side 140140 points,Double-sided 280140 points
4	Brightness (white field color temperature 6500K)	5500cd/m²
5	Horizontal view/vertical view	140°/140°
6	Best visual distance (m)	4-100m
7	flatness	≥99%
8	Chroma uniformity	±0.003 Cx,Cy之内
9	service life	>100,000 Hours Theoretical value
10	way to install	Side hanging, Mosaic, wall hanging, lifting
11	Protection Class	IP65
12	weight	Single side ≈12KG double side ≈16KG
System control parameter
1	Signal color processing bits	Red, green, and blue ≥14bit
2	type of drive	Constant current drive 1/14 scan
3	repetition frequency	60 frames per second
4	refresh rate	≥3840HZ/S
5	maximum power	Single side 200W/ set, double side 400W/ set
6	average power	Single side 67W/ set, double side 134W/ set
7	Operating Temperature Range	-40°C~+60°C
8	Screen color temperature	2000K-9500K is adjustable
9	brilliance control	Manual/automatic/program control
10	control mode	Asynchronous control/mobile APP, WIFI, U disk, cloud platform

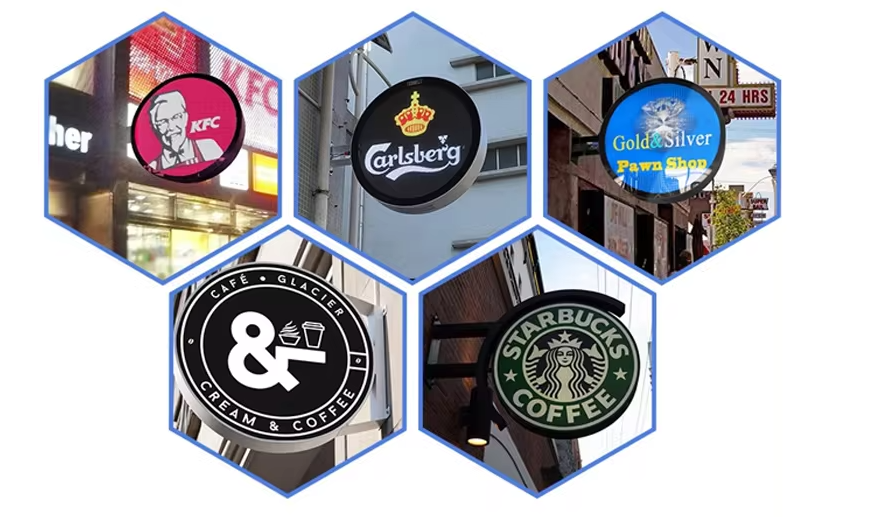

Nowadays led logo sign is becoming one the most popular media for Starbucks coffee stores, MacDonald stores, Kentucky stores,other retail chain stores, drug chain stores, etc. We have two different logo sign available: one is P4 outdoor logosign with 512mm , the other is P4outdoor logo sign with 600mm.Now we will explore what makes logo sign attractive,the main reason is like following features shows:

1. High brightness & high contrast ratio makes sharp pictures.Max 55,000nits brightness make it still visible even under the sunshine.While the contrast ratio is around 4,000:1, so dynamic pictures always available;

2. Easy operation, you plug in power switch then the logo sign displays video or pictures automatically;Logo sign can be directly mounted on the wall by normal bolt.You can deliver video to logo sign with your mobile phone, or via GPRS 3g 4g 5g, USB disk, or cloud system which can manager logo sign clusters esp. for logo sign in different cities;

3.Double sides logo with front access led modules makes maintenance easy;

4. IP65 makes completely water-proof;

5. For customs logo sign you only can show one ads, but with led logo sign you can play ads from other clients, then you can get extra income.
