| Brand Name : | H&S LED |
| Model Number : | P1.25 |
| Certification : | CE ROHS FCC |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 10000PCS |
| Delivery Time : | 7-25 workdays |
SMD1010 LED Model Soft LED display - Indoor Flexible led display
P1.25 soft Led display P1.25 LED model
Parameters:
SMD1010 LED Model - P1.25 Flexible led display | |
| Pixel Pitch | 1.25mm |
LED Configuration | SMD1010 |
Application | Indoor |
Pixel Density/sqm | 640000 dots |
Module Size/mm | 320 x 160 mm |
Module Resolution | 256 x 128 dots |
Scan | 1/62S |
IP Rating | IP43 |
Brightness /sqm | 800-1000 nits |
Gray Scale/bit | 16 bit |
Max. Power Consumption/W | 640 W/sqm |
Ave. Power Consumption/W | 192 W/sqm |
Refresh Frequency/Hz | 3840 Hz |
| Humidity(working) | 10-95% |
| Temperature | -20-60℃ |
Working voltage | AC 220±10% or 110±10% |
Operating Life | 100,000Hours |

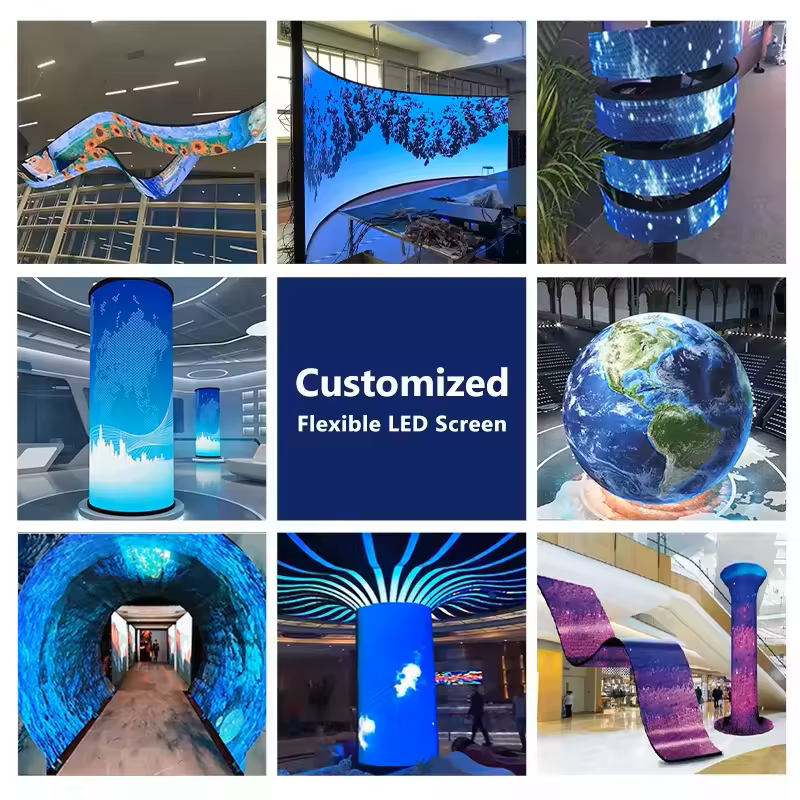

Easily Build Concave & Convex Curves:
Spice up your imaging landscape via seamless convex or concave
curved video walls with angles, curves and just about any other
creative design.
Front & Rear Serviceability:
The module can be maintained and disassembled from the front & rear
end, Single module replacement is made easy, improving
serviceability in the field.
Magnetic Design
Magnetic mounts allow for attachment to virtually any surface
enabling the most creative LED designs.
Reliable Data & Power Management:
External sending and receiving control, paired with quality
connectors, guarantee safe and reliable connections between each
Adaptive LED tile where traditional
flat LED panels are not applicable, Keeping construction of the
final product slim, lightweight, and compact.
|
|
