SMD2020 P4 Soft Flexible Led Display Module Screen Programmable

Ask Lasest Price
Brand Name :	HS
Model Number :	P4
Certification :	CE ROHS FCC
Payment Terms :	L/C, T/T
Supply Ability :	1000Set
Delivery Time :	7-15 workdays

Add to Cart

Product Details
Company Profile

SMD2020 P4 Soft Flexible Led Display Module Screen Programmable

LED flexible module, flexible and versatile, can bend freely.
Strong magnetic suction installation, simple, fast, and precise.
Modular structural design, easy to disassemble and maintain.
The surface adopts a silicone mask, which is soft and easy to bend.

NO	Project	Technical Parameters
1	Pixel pitch	4mm
2	Pixel density	62500dots/m²
3	resolution	64dotsX32dots
4	size	256mm X128mm X11mm
5	weight	0.5kg
6	Bending arc	Center bend arc≤120°
7	Number of bends	<1000pcs
8	Driving method	16-bit constant current driver
9	scanning method	1/16 s
10	Operating Voltage	DC5V±10%
11	Max current	2.6A
12	Max Power	13W
13	Power interface	VH4
14	Signal interface	HUB75D(IDC16)
15	brightness	1000cd/m²
16	Color &temperature	9000±500K
17	Perspective	120° 120°
18	Best sight distance	≥4m
19	Gray scale	≥14 Bit
20	Refresh rate	1920Hz-3840Hz
21	Dimming	800-1000
22	Service life	100,000H
23	Operating temperature	- 20℃~60℃
24	Working humidity	10%-95%RH
25	storage temperature	- 40℃~80℃
26	Drive device	MBI5124

Features:

1. High flexibility
Tailored according to needs, the module has extremely high flexibility and a curvature of less than 90 °;
2. Sturdy structure
The box body adopts a die stamping and folding process, with high strength; CNC precision machining, precise size and good consistency;
3. Brightness adjustable
Using specialized technology and devices, adjusting display brightness through hardware/software implementation methods without sacrificing the grayscale of the image;
4. Ultra wide viewing angle
Both horizontal and vertical viewing angles can reach 140 °, and high-quality display effects can be seen from all angles;
5. High protection
High standard, dust-proof, moisture-proof, and corrosion-resistant process treatment, suitable for long-term use in harsh outdoor environments;
6. Easy to maintain
The design of the rear door of the box allows for front/rear maintenance of the module;
7. Standardization
Adopting standardized modules and boxes for quick and convenient installation;
8. Energy saving environment
Excellent heat dissipation performance, low power consumption, and high stability;

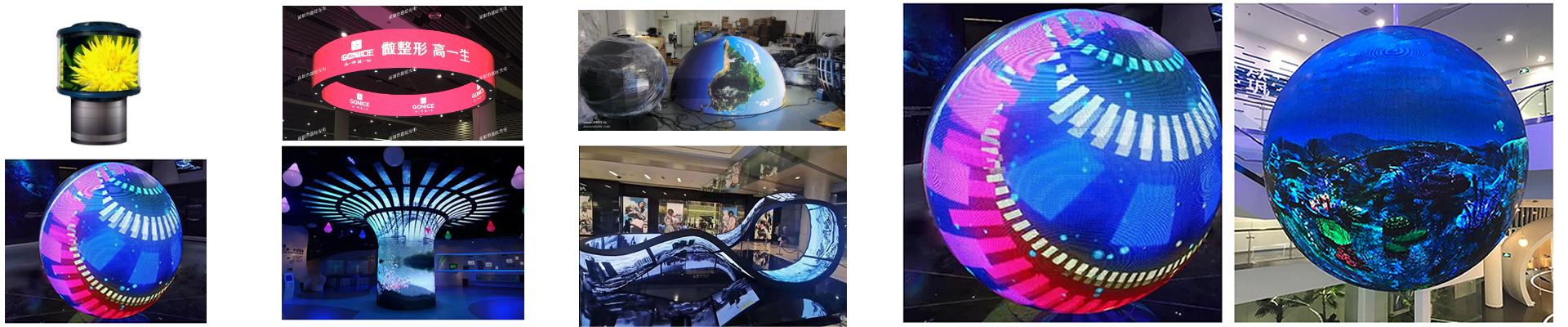

Product Pictures:
