SMD P6.67 Outdoor Fixed LED Video Display

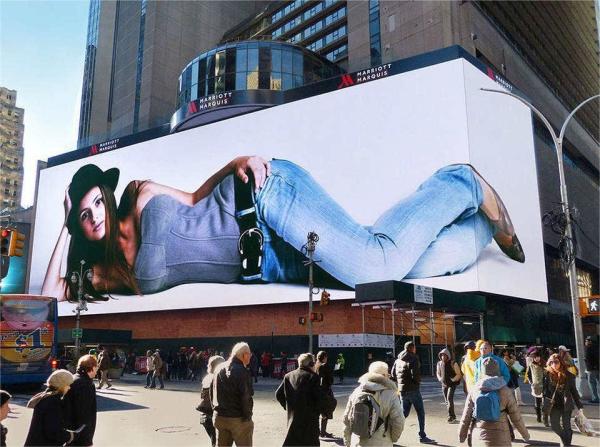

Outdoor LED displays serve a wide range of practical and promotional purposes in various settings. These high-resolution screens are prominently used in advertising, providing vibrant and dynamic content that captures attention effectively. They are also instrumental in public information dissemination, such as displaying real-time news updates, weather forecasts, and emergency alerts
Application fields of outdoor LED display screens:
Led Display Specification
| outdoor led display P6.67 | |||
| Resolution/mm | 6.67mm | ||
| Pixel configuration | 1R1G1B | ||
| Pixel density/pixels/m² | 22478/m² | ||
| Module resolution | 48x24 | ||
| Module size/mm | 320x160mm/320x320mm | ||
| View distance | 14-300m | ||
| Single point brightness adjust | Can be added | ||
| Single point color adjust | Can be added | ||
| White balance brightness | >5500cd/㎡ | ||
| Color temperature | 6500K-9500K | ||
| Horizontal view angle | 120(degrees) | ||
| Vertical view angle | 60(degrees) | ||
| Signal Process bit | 16bit | ||
| Scanning mode | 1/4S | ||
| Frame rate | 60Hz | ||
| Refresh frequency | >1920-3840Hz | ||
| Brightness | 4000-5500 CD | ||
| Out of control point | <1/10000 | ||
| Working hours | ≥72hours | ||
| Mean Time Between Failure | >5000hours | ||
| Life time | 100000hours | ||
| Environment temperature range | Operating temperature range: -20-45℃ | ||
| Luminous point width between centres | Deviation<3% | ||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||
| Humidity(working) | working:10-95% | ||
Outdoor Fixed Screen/Outdoor Front Service Led Display/Outdoor Stadium Led Display/Outdoor Mesh Screen/Rental Events Screen
Waterproof and dustproof design: Outdoor LED displays are usually designed to be waterproof and dustproof, which can withstand the impact of adverse weather conditions such as rain and sand.
High brightness: LED displays typically require high brightness in outdoor environments to ensure clear visibility even in strong sunlight.
Wide perspective: With a wide range of perspectives, the audience can see clear images from any angle, adapting to outdoor scenes with dense audience.
Strong durability: LED displays are usually made of durable materials and can operate in outdoor environments for long periods of time without being easily damaged.
Energy saving and environmental protection: Compared to traditional display technologies, LED displays usually have a higher energy efficiency ratio, which can save energy and reduce environmental impact.
Remote management: supports remote control and management, making it convenient for operators to update content and monitor screen status.
High reliability: Designed for long-term stable operation, reducing downtime caused by faults and ensuring continuous display of content.
|
|
