AC110-220V Input Voltage P4.28 Round LED Display 1/14 Scan Mode Customized Design

Shenzhen H&S Innovation Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap AC110-220V Input Voltage P4.28 Round LED Display 1/14 Scan Mode Customized Design from wholesalers

    Buy cheap AC110-220V Input Voltage P4.28 Round LED Display 1/14 Scan Mode Customized Design from wholesalers
    • Buy cheap AC110-220V Input Voltage P4.28 Round LED Display 1/14 Scan Mode Customized Design from wholesalers
    • Buy cheap AC110-220V Input Voltage P4.28 Round LED Display 1/14 Scan Mode Customized Design from wholesalers
    • Buy cheap AC110-220V Input Voltage P4.28 Round LED Display 1/14 Scan Mode Customized Design from wholesalers
    • Buy cheap AC110-220V Input Voltage P4.28 Round LED Display 1/14 Scan Mode Customized Design from wholesalers
    • Buy cheap AC110-220V Input Voltage P4.28 Round LED Display 1/14 Scan Mode Customized Design from wholesalers

    AC110-220V Input Voltage P4.28 Round LED Display 1/14 Scan Mode Customized Design

    Ask Lasest Price
    Brand Name : H&S LED
    Model Number : P4
    Certification : CE ROHS FCC
    Payment Terms : L/C, T/T, D/A, T/T, Western Union, MoneyGram
    Supply Ability : 300-1000Set
    Delivery Time : 10-45 workdays
    • Product Details
    • Company Profile

    AC110-220V Input Voltage P4.28 Round LED Display 1/14 Scan Mode Customized Design

    Outdoor circular LED screen:
    PH4.28 Technical Specifications
    Pixel point parameter
    1LEDSMD1921
    2Pixel Pitch4.28mm
    3Pixel composition1R1G1B
    Module technical parameters
    1Module resolution (W * H)70*70dot
    2Module size (W * H)300mm*300mm
    Screen body technical parameters
    1Full screen size640mm*640mm*120mm
    2dot density54289dot/m²
    3screen resolutionOne side 140*140 points,Double-sided 280*140 points
    4Brightness (white field color temperature 6500K)5500cd/m²
    5Horizontal view/vertical view140°/140°
    6Best visual distance (m)4-100m
    7flatness≥99%
    8Chroma uniformity±0.003 Cx,Cy之内
    9service life>100,000 Hours Theoretical value
    10way to installSide hanging, Mosaic, wall hanging, lifting
    11Protection ClassIP65
    12weightSingle side ≈12KG double side ≈16KG
    System control parameter
    1Signal color processing bitsRed, green, and blue ≥14bit
    2type of driveConstant current drive 1/14 scan
    3repetition frequency60 frames per second
    4refresh rate≥3840HZ/S
    5maximum powerSingle side 200W/ set, double side 400W/ set
    6average powerSingle side 67W/ set, double side 134W/ set
    7Operating Temperature Range-40°C~+60°C
    8Screen color temperature2000K-9500K is adjustable
    9brilliance controlManual/automatic/program control
    10control modeAsynchronous control/mobile APP, WIFI, U disk, cloud platform

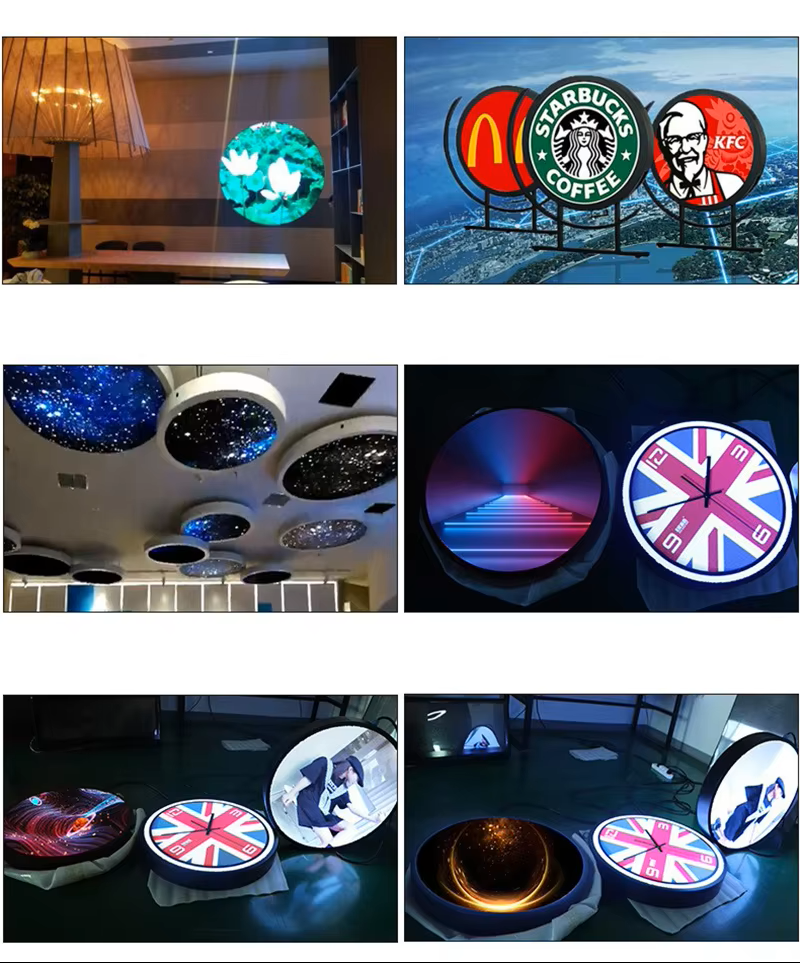

    application:

    1. Advertising and Brand Promotion: These screens stand out in crowded urban landscapes, attracting attention with vibrant visuals and dynamic content. Businesses can use them to showcase their products, services, and promotions, creating an engaging and memorable advertising experience for passersby.

    2. Event and Entertainment Venues: At concerts, sports stadiums, festivals, and other large-scale events, circular LED screens add to the spectacle by displaying live feeds, scores, replays, and event-related information. They enhance audience engagement and create an immersive viewing experience.

    3. Public Information Displays: Municipalities and government agencies can utilize outdoor circular LED screens to disseminate critical information such as weather updates, emergency alerts, public announcements, and traffic conditions. Their circular design often allows for better visibility from multiple angles, making them ideal for community information hubs.

    4. Retail and Mall Atriums: In shopping malls and retail outlets, these screens can be used to feature promotions, new arrivals, and store directories. They contribute to an ambiance of modernity and excitement, encouraging customer footfall and interaction.

    5. Art Installations and Public Art: Artists and designers often employ circular LED screens as mediums for creative expressions, blending art with technology to present unique visual narratives. These installations can elevate public spaces, fostering cultural appreciation and dialogue.

    6. Transportation Hubs: Airports, train stations, and bus terminals benefit from circular LED screens for displaying flight schedules, train times, arrival and departure information, and travel advisories. Their clarity and versatility ensure that travelers stay informed amidst bustling environments.

    7. Corporate and Campus Signage: Companies and educational institutions can install these screens on their campuses to welcome visitors, display news, achievements, and upcoming events. They serve as dynamic and professional communication tools that reflect the organization's culture and values.
