Brand Name : | HSLED |
Model Number : | Pole LED Display |
Certification : | CE ROHS FCC |
Payment Terms : | L/C, T/T |
Supply Ability : | 1000set |
Delivery Time : | 10-35workdays |

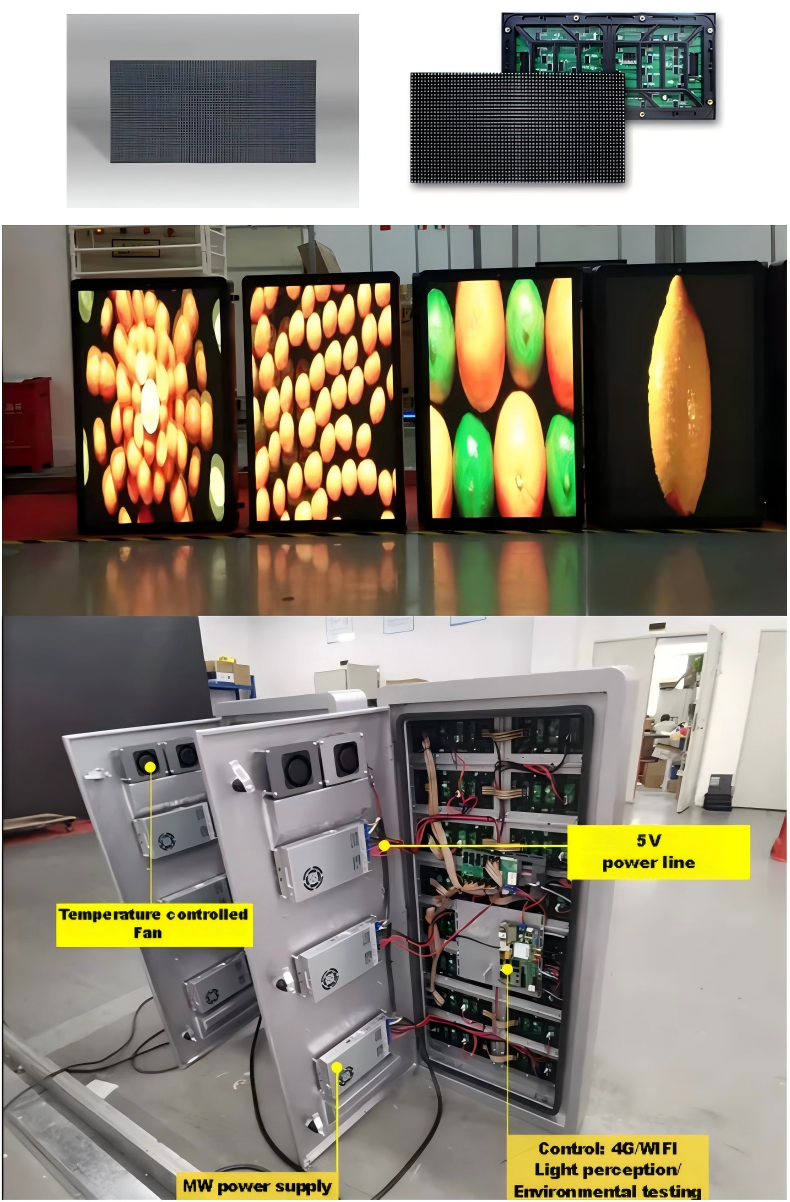

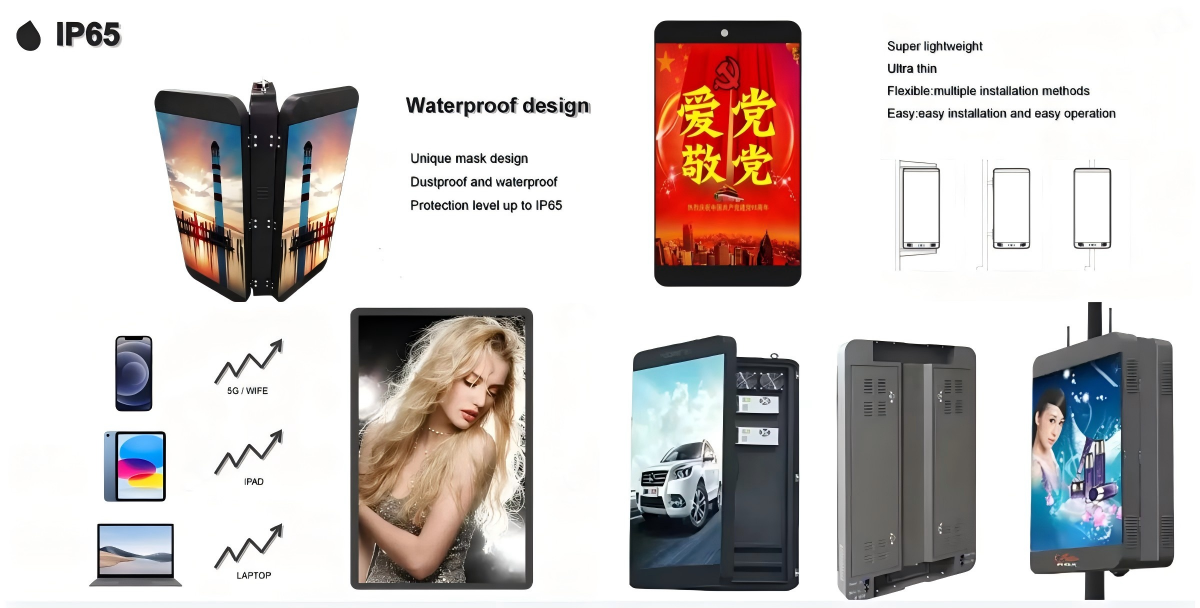

street light pole LED Double-sided /Single -sided LED display screen
outdoor waterproof street lighting pole vertical digital signage signs street mounted led display screen
High Quality Outdoor Waterproof Led Display WIFI 3G 4G Outdoor Street Lighting Pole Advertising Display
Product features:
Product Parameters:
entry | parameter |
Pixel pitch: | 3.84㎜ |
Pixel density: | 67600 pixels /㎡ |
Modular pixel resolution: | 52 points (W) x 52 points (H) |
Module size: | 200mm (W) ×200mm (H) |
Display size: | 600(W) x 1200mm(H) |
Display resolution: | 156 points (width)×312 points (height)*2=48672 pixels *2 |
Number of modules: | 3pieces (width) x 6 pieces (height) *2=18 pieces *2 |
Frame size: | 600mm (W) ×1200mm (H) ×160mm (H) |
Case color | Gray, white, black |
Visual distance | 3m~200m |
Power source | Bright weft power supply |
Driver IC | Highly refreshed IC3840 scan |
Maximum brightness | ≥5500cd/㎡, uniformity is not less than 97% |
Visual Angle | Horizontal: 120°/ vertical: 120°, light point center distance
deviation is less than 3% |
Refresh frequency | ≥3840Hz (according to JS/T11281-2007 industry standard) |
Display color | 68.7 billion colors, uniformity of not less than 97% |
Frame change rate | ≥60Hz |
Temperature | 2000K ~ 10000K(adjustable) |
Driving mode | Constant current drive |
Working environment requirement | -25℃~+70℃,10%~98%RH |
Box material | Sheet metal |
Box weight | about 40KG |
Maximum power | 1200W/ m2 |
Average power | 450W/ m2 |
If you need LED pole screens of different models/sizes, we can customize them according to your needs.
![]() |
